instantphoto.eu              Kodak EK2

The Kodak EK2 is the simplest model of the older Kodak Instant cameras. As all older Kodaks it uses PR 144-10 instant film. It was only produced between 1977 and 1979, it's also known as "The Handle" and it was marketed also by the Coca-Cola company.

For some general information please have a look at this page.

There nearly no technical features available.

Automatic exposre
Fixed focus, 1.2 - ∞
No flash, socket for flip flash
Aperture is said to be F 18 and switches to F 12.8 when a flip flash is inserted
No electric film ejection, you have to turn a handle (4 turns)

Lens: 110mm


So here are some photos of the
Kodak EK2:

../jpgother/kodak_ek2_P1010153.JPG
The camera.

../jpgother/kodak_ek2_P1010154.JPG

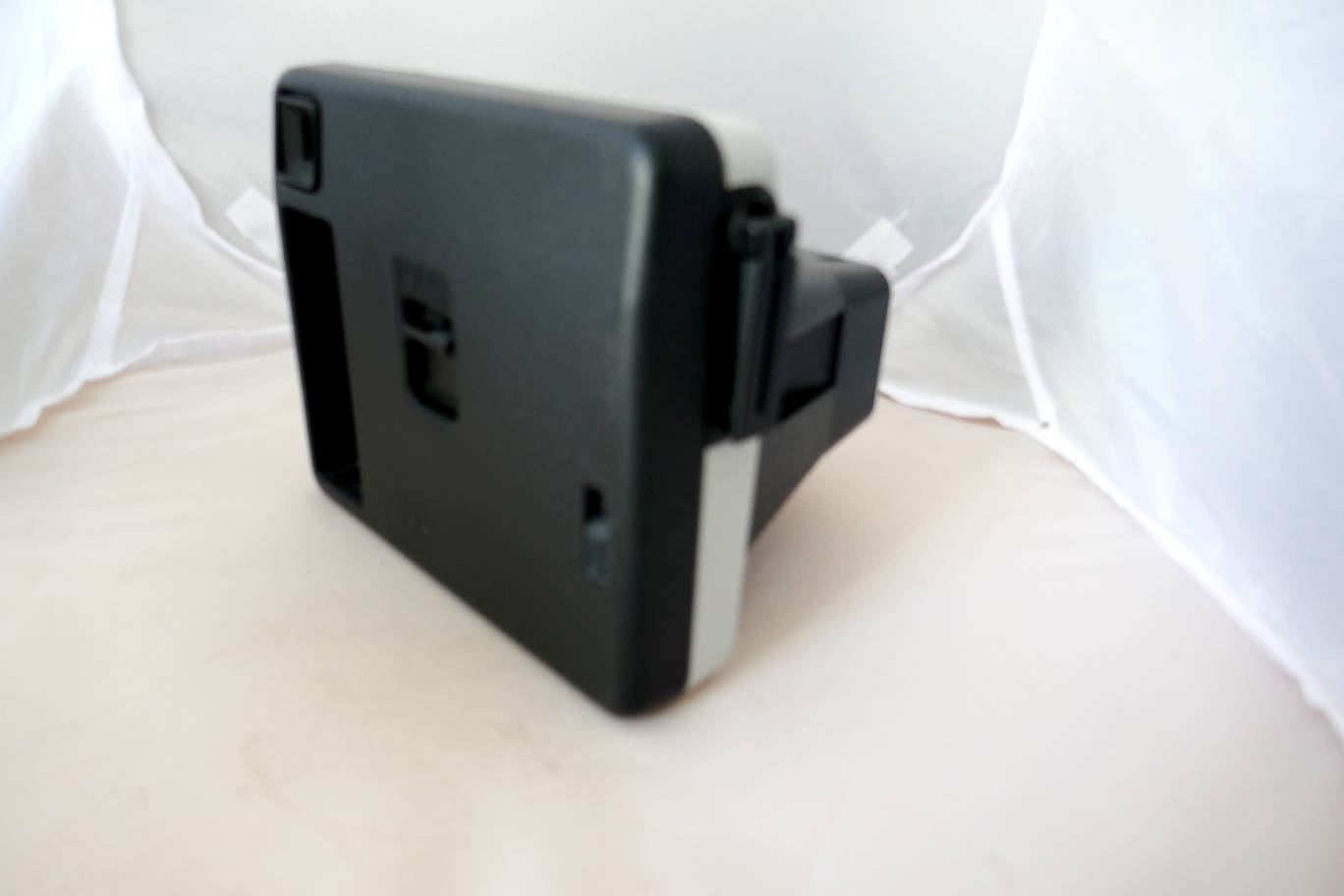

Back.

../jpgother/kodak_ek2_P1010155.JPG
Front

../jpgother/kodak_ek2_P1010156.JPG
Film comparment.

The exposure system requires a 6V J battery (7K67).
