This is a passport or identity card camera from GBC (General Binding Corporation). It takes photos on Polaroid Pack 100 film in passport size (4 different photos on one picture) in passport size. GBC sold the material for making identity cards for companies and congresses. Mine does not work, so I opened it to search for the problem. So there are photos from the inside as well. The camera is very sturdy, it weighs more than 5kg.

So here are some photos:

../jpgother/gbc_passport_IMG_5425.JPG

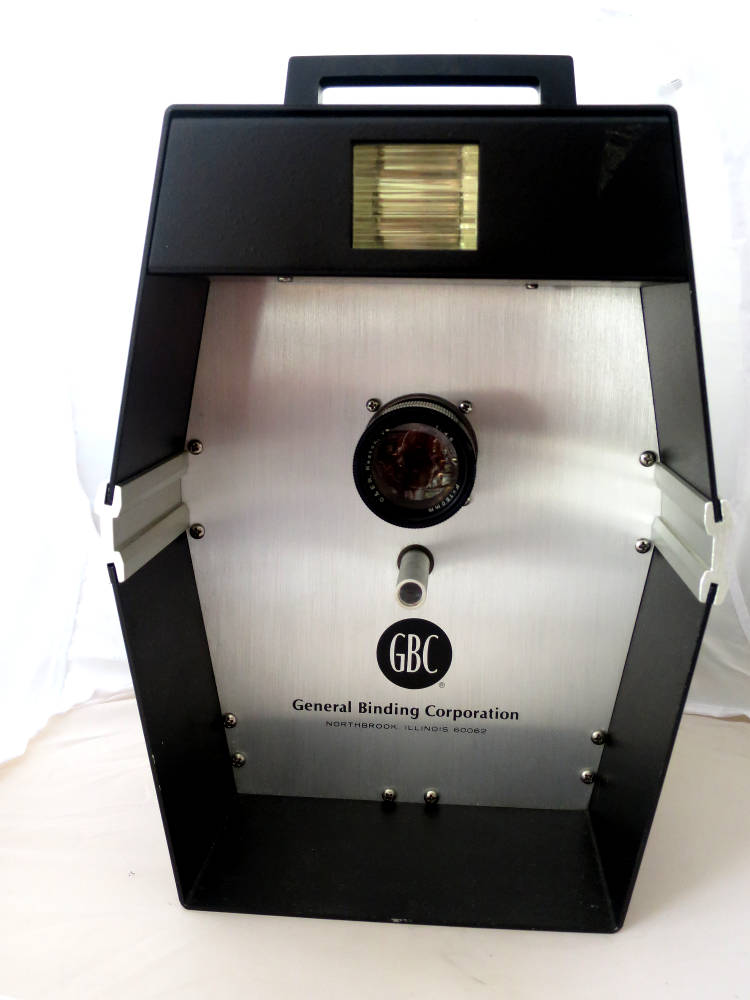

Front

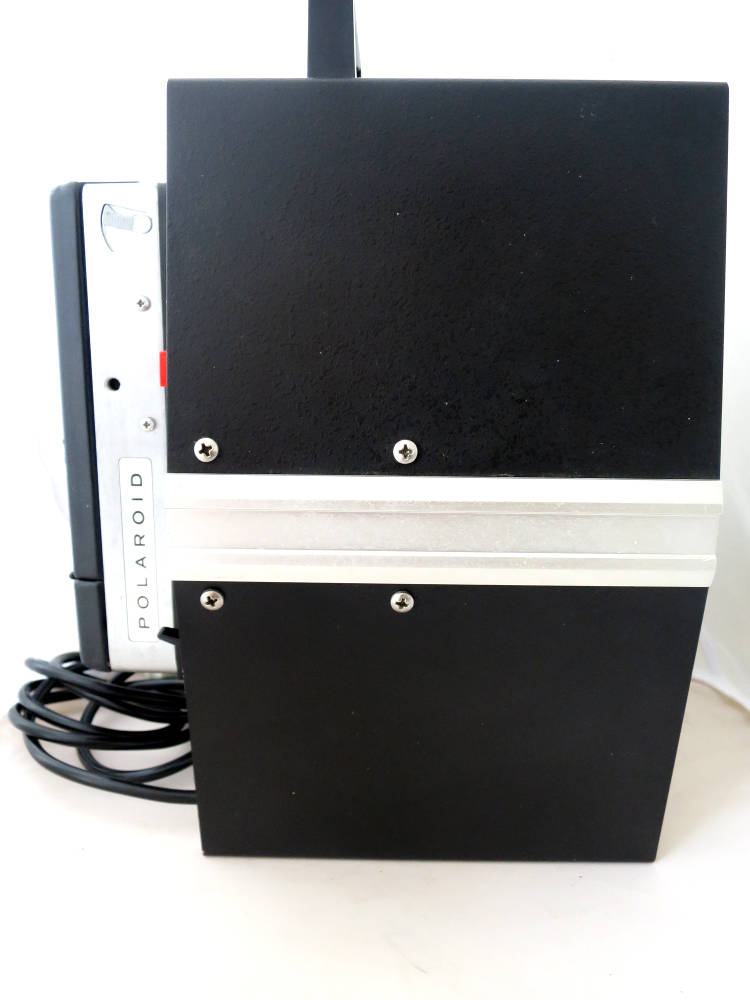

../jpgother/gbc_passport_IMG_5428.JPG
Left side (right side looks similar).

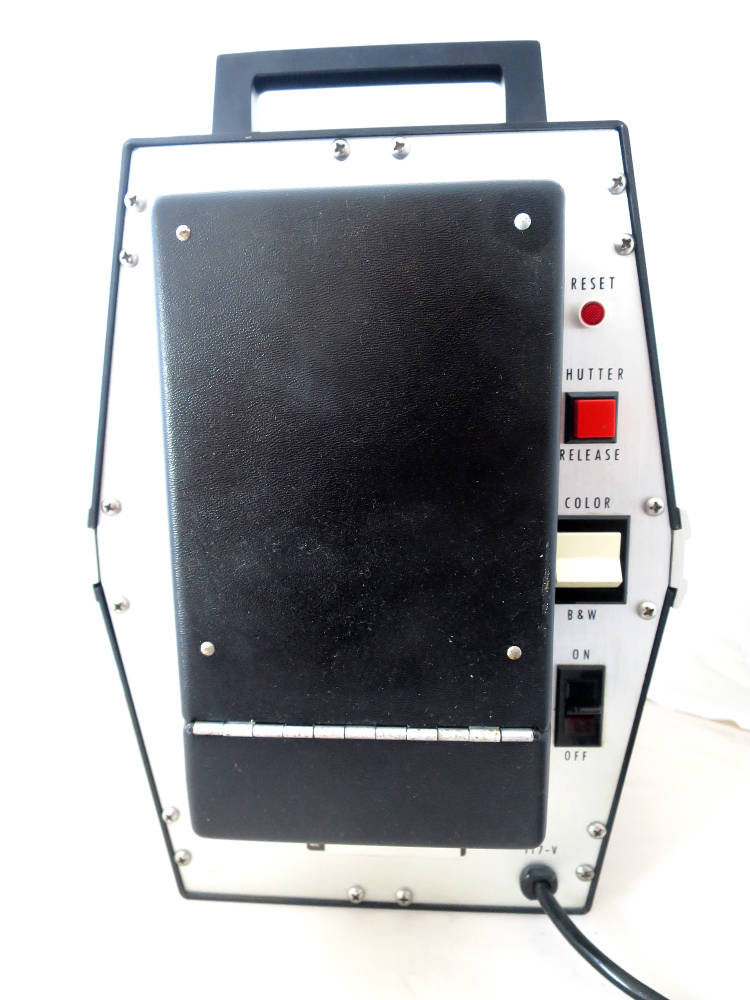

../jpgother/gbc_passport_IMG_5419.JPG
Back side.

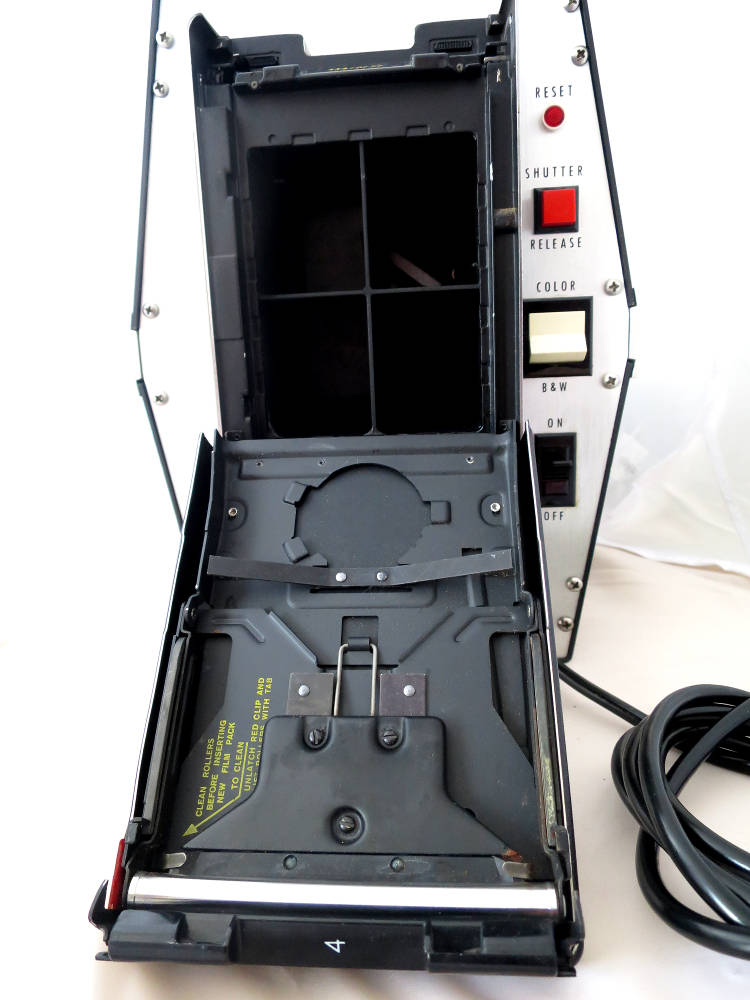

../jpgother/gbc_passport_IMG_5422.JPG
Back open.

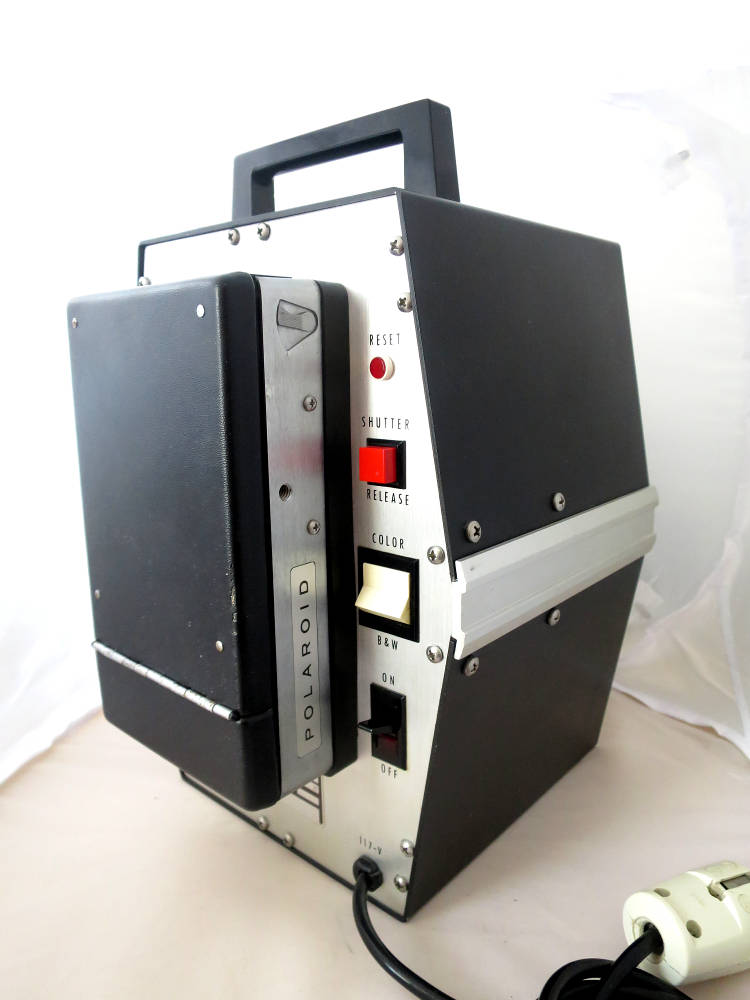

../jpgother/gbc_passport_IMG_5418.JPG
Control panel.

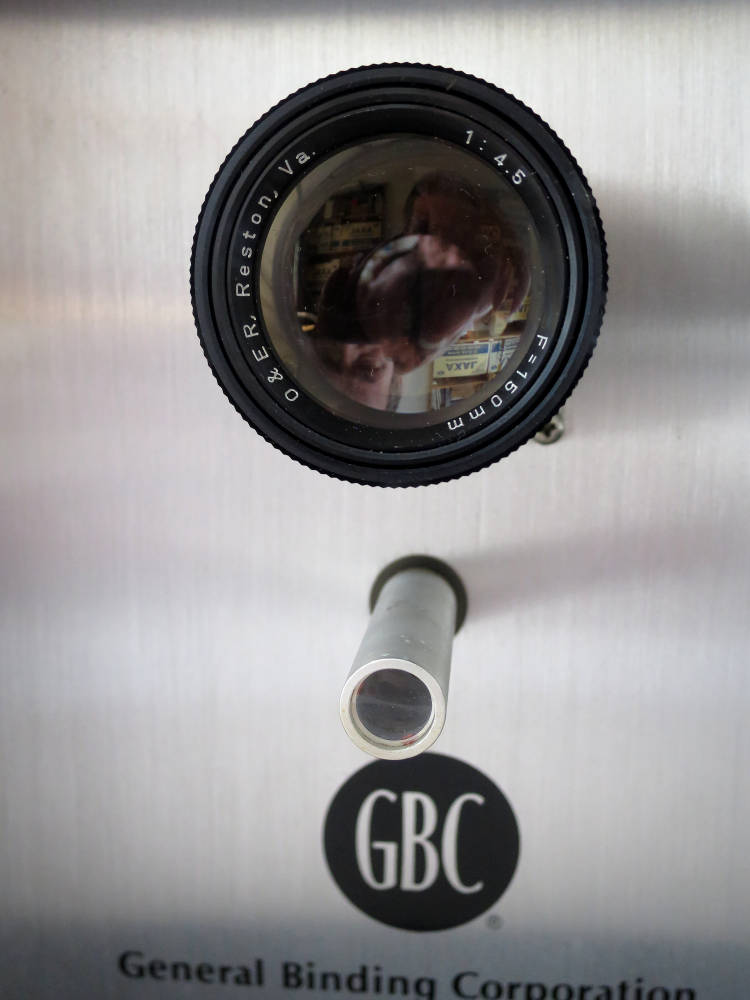

../jpgother/gbc_passport_IMG_5426.JPG
Lens and (maybe) sensor.

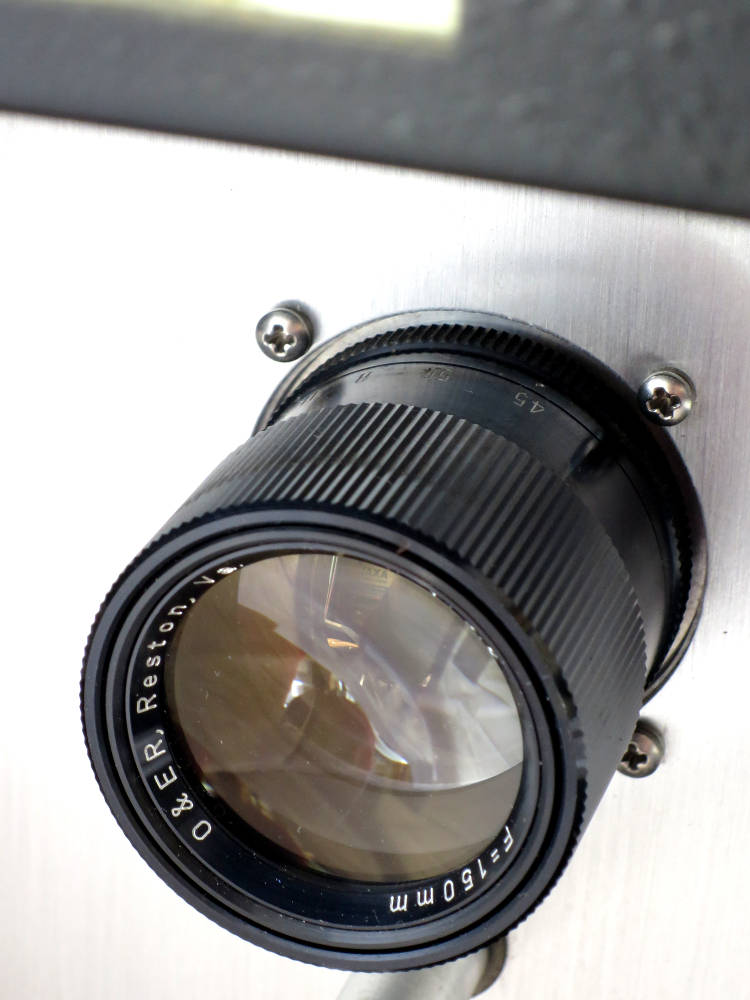

../jpgother/gbc_passport_IMG_5427.JPG
Aperture setting by turning the lens barrel.

The upper and the bottom part come off easily, just 4 screws to pull each time. It's a modular system, easy to repair.

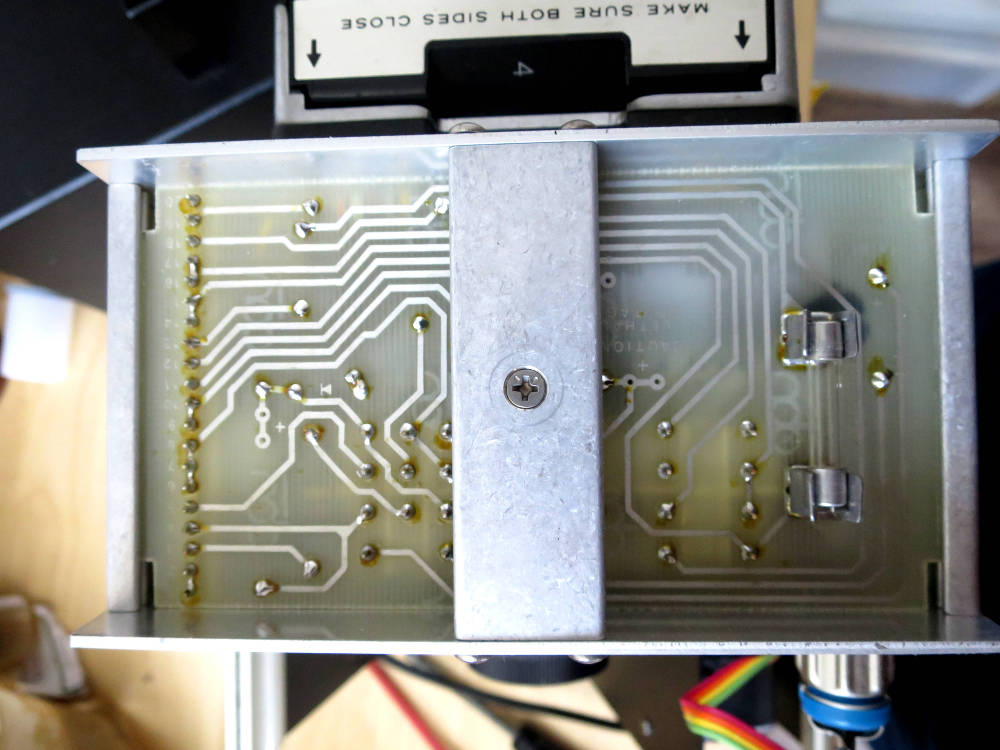

../jpgother/gbc_passport_IMG_5412.JPG
Seen from top: printed circuit and fuse.

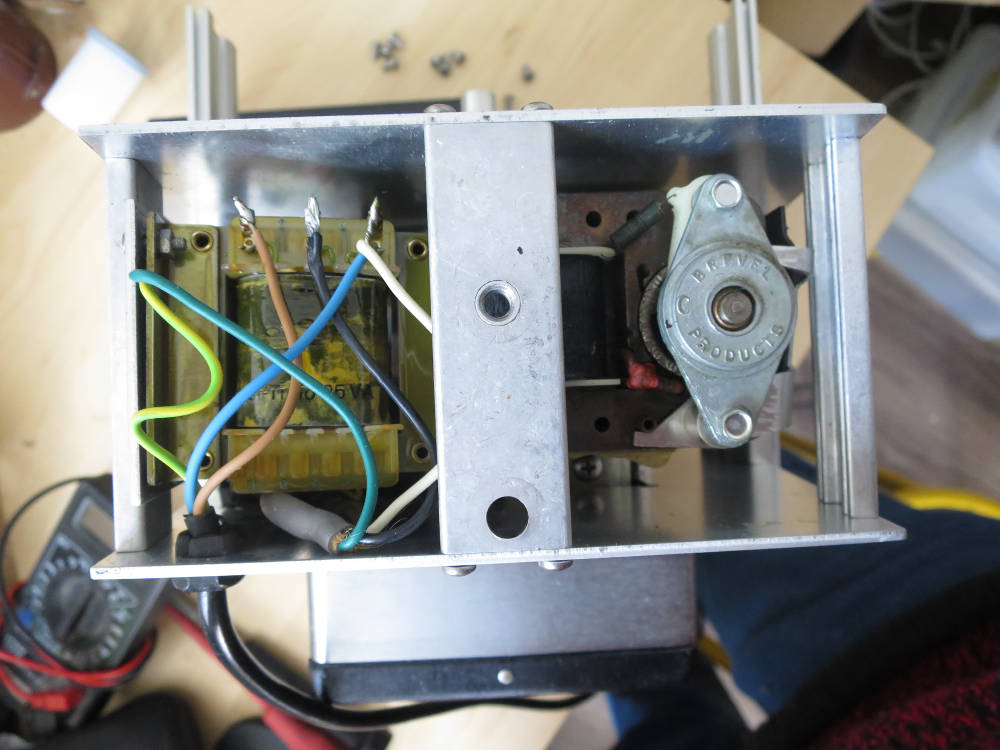

../jpgother/gbc_passport_IMG_5406.JPG
Seen from bottom.

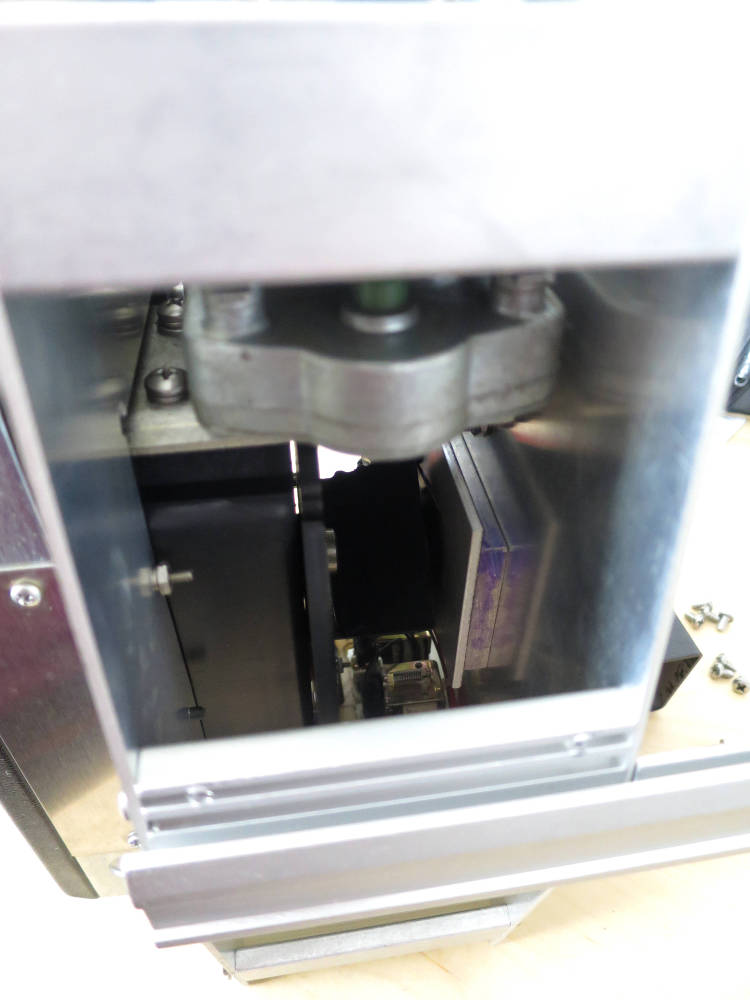

../jpgother/gbc_passport_IMG_5405.JPG
Right side, bottom.

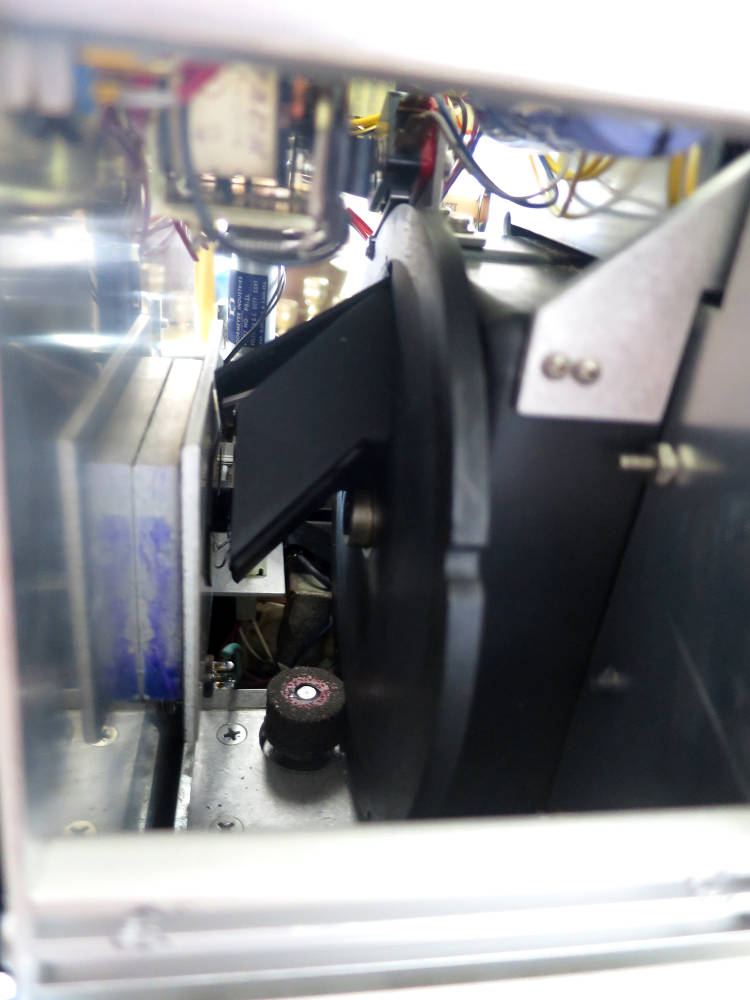

../jpgother/gbc_passport_IMG_5410.JPG
Looking inside from right side, top.

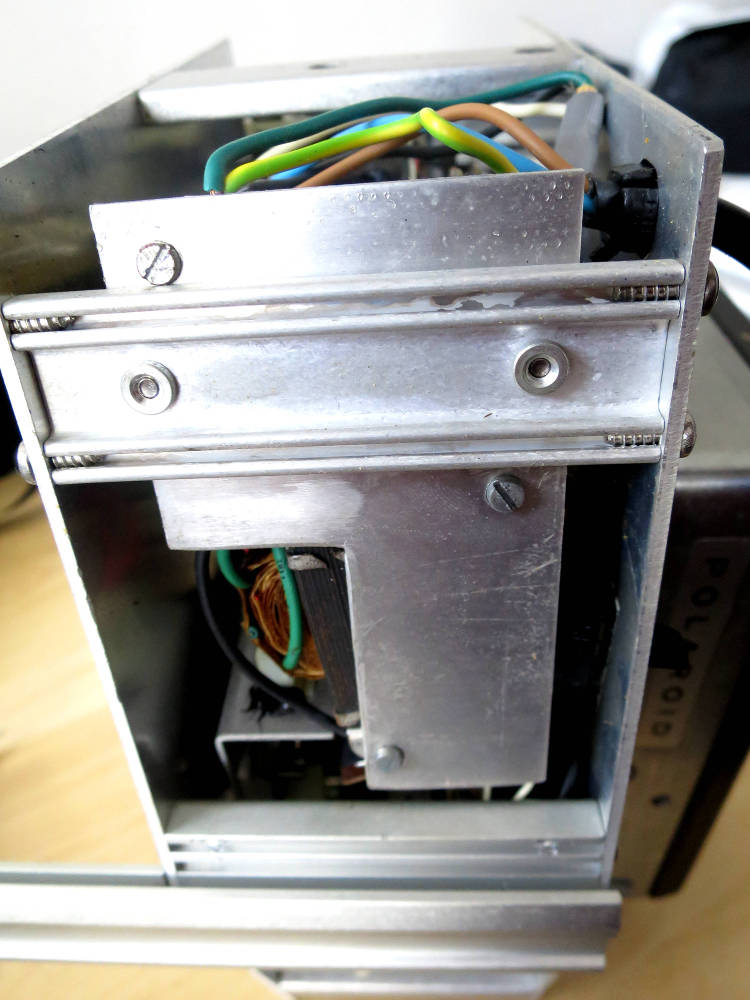

../jpgother/gbc_passport_IMG_5407.JPG
Left side, bottom.

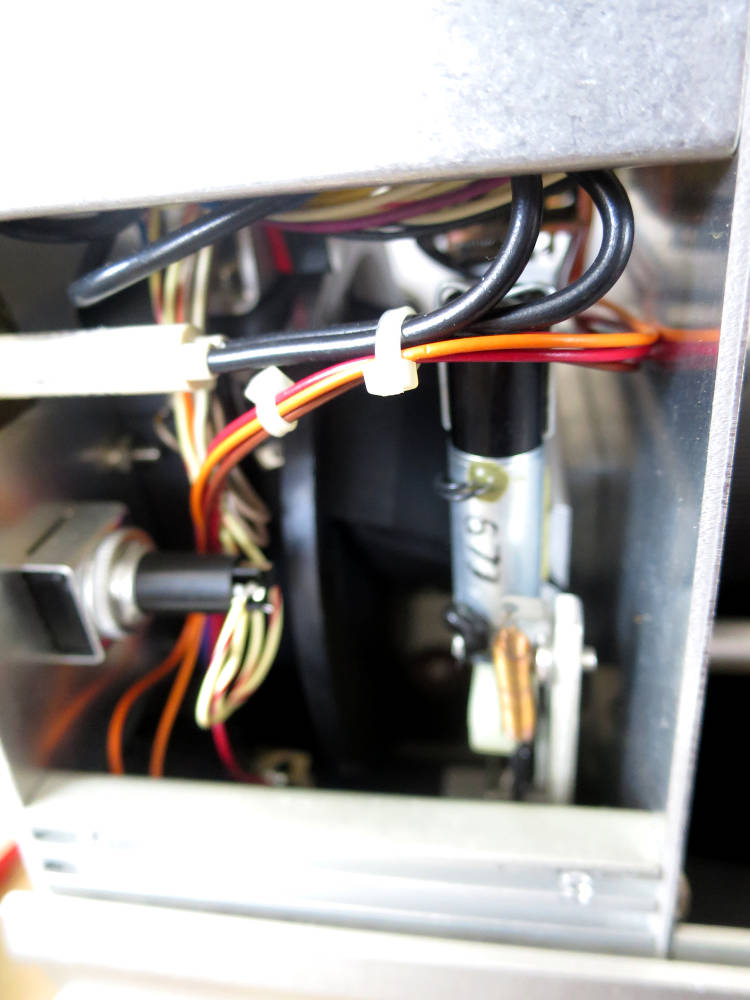

../jpgother/gbc_passport_IMG_5408.JPG
Left side, top.

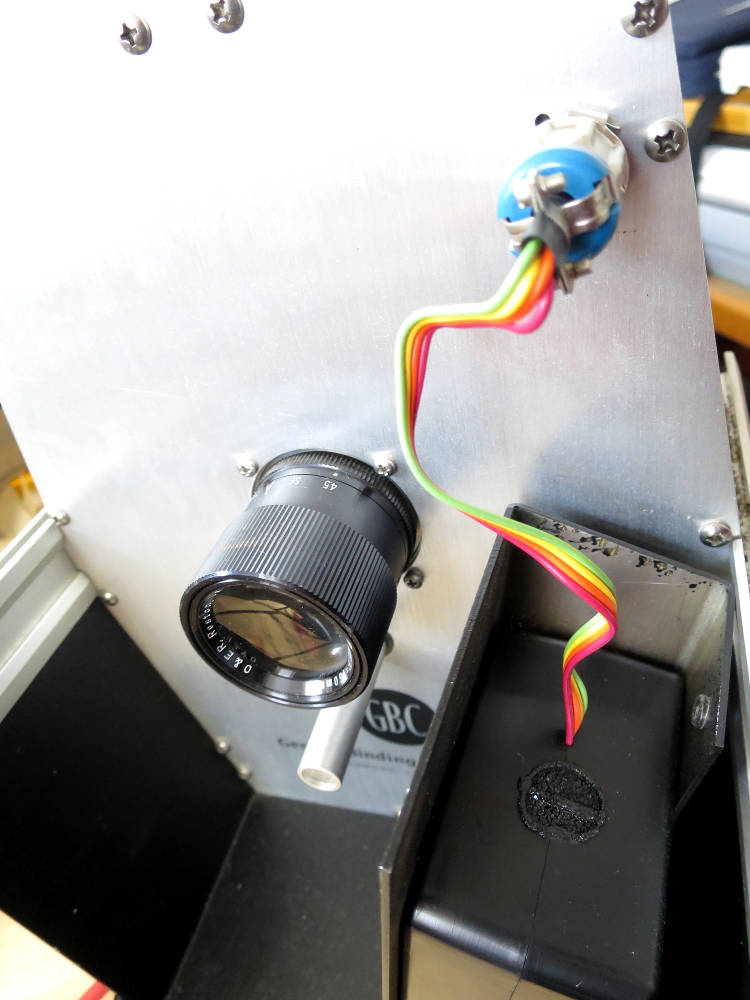

../jpgother/gbc_passport_IMG_5411.JPG
Flash is held by 2 screws and it's detachable.
