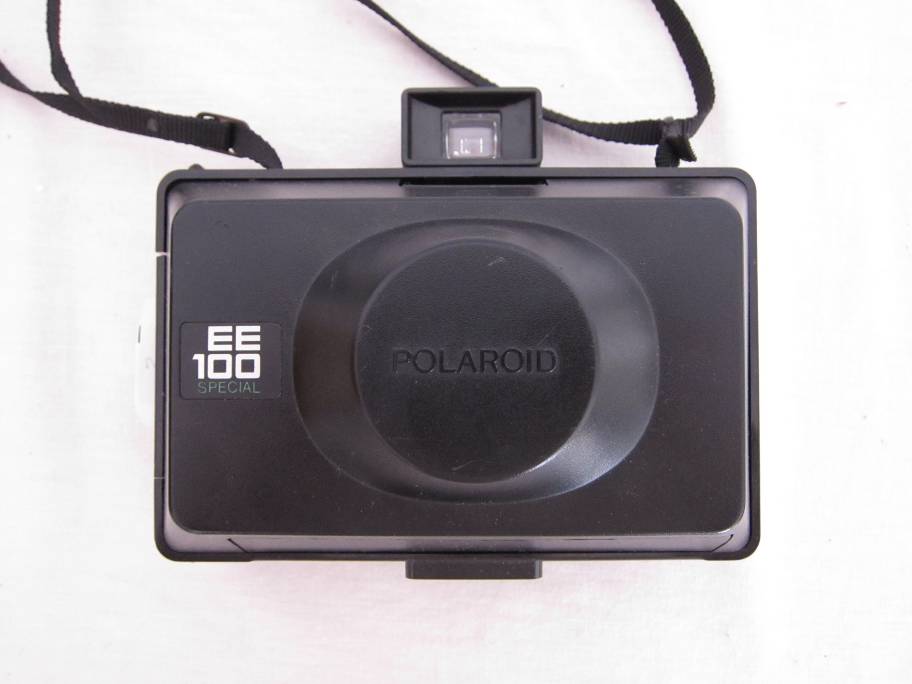

This is the POLAROID EE 100. It is one of the new style folding pack film camera models.
It has manual focussing and it is povided with flashcube socket.
Automatic exposure system is similar to the "original style" pack
cameras. It can use either standard rectangular format OR square format
pack films, the viewfinder has masks for both film formats, but does
not indicate which format is in use.
Lens: F9.2/114mm (3-element plastic) "Everset" electronic shutter, speed ~10 seconds - 1/500 sec. Size: approx. 17x14x8cm, Weight: 710gr. Built-in timer. Tripod Socket. 75/3000 ISO switch. Tripod Socket. Can use 100 or 80 film packs. Flashcube socket.

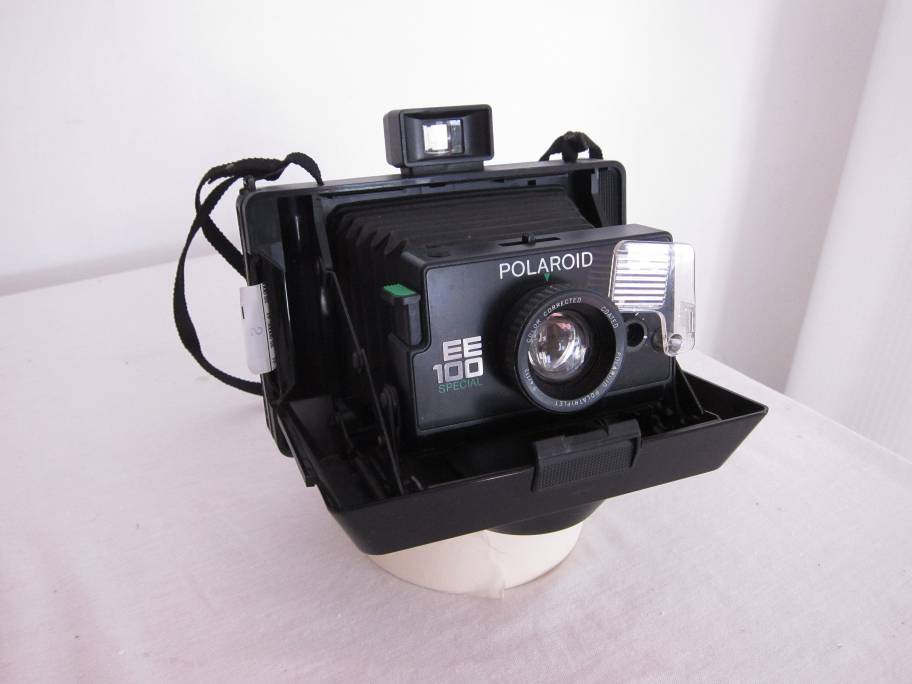

Camera open and ready.

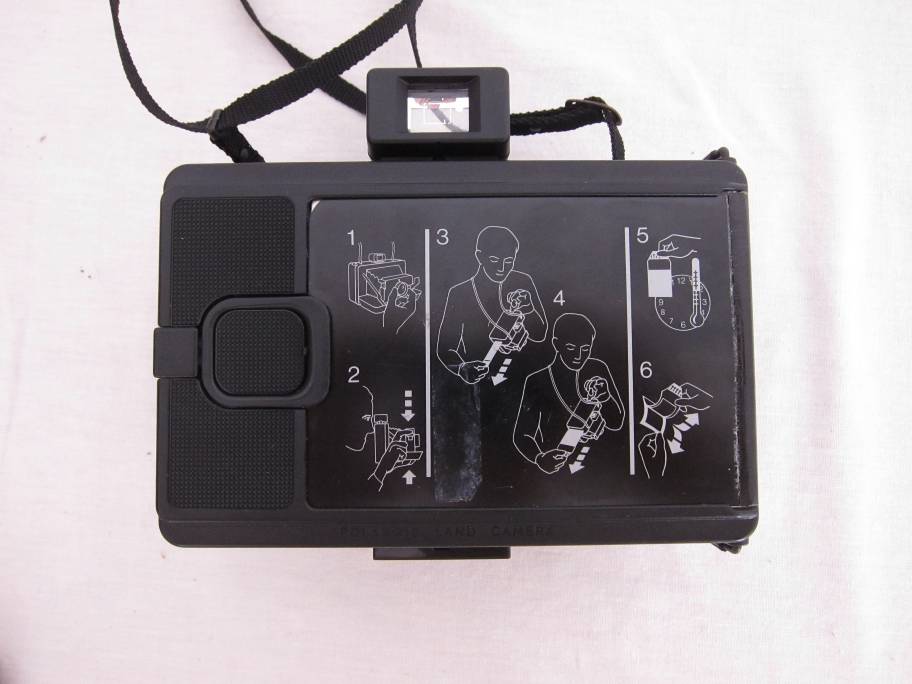

Back view. Non-coupled timer.The timer was necessary for the original Polaroid
film, which had to be developped exactly in time according to the
temperature, whereas the Fuji FP film is self-terminating.
