The very expensive National PW-110 adapter set aside, I have found other flash solutions.

../jpgdiy/big_shot_rollei_adapter.JPG
This is a Rollei adapter for Magicube cameras.

The adapter above was supplied with the "agfa pocket lux" flash in the old version for the 2000 series, but be careful: this is not the 234 version for the 2008 series and also not the 901. You can attach any flash that has a PC socket.

In the United States, you can find Kalimar flashes for 126X and for Pocket Kodaks. Their guide number is quite small, about 16 in my opinion. As the standard film was 200 ISO, that was enough in those days.

The first is a Kalimar K-462 for 126X cameras. I got it for $5 + shipping. It attaches directly to the base of the Big Shot. I taped it with duct tape to try it. I put lighten/darken to the farmost lighten setting.

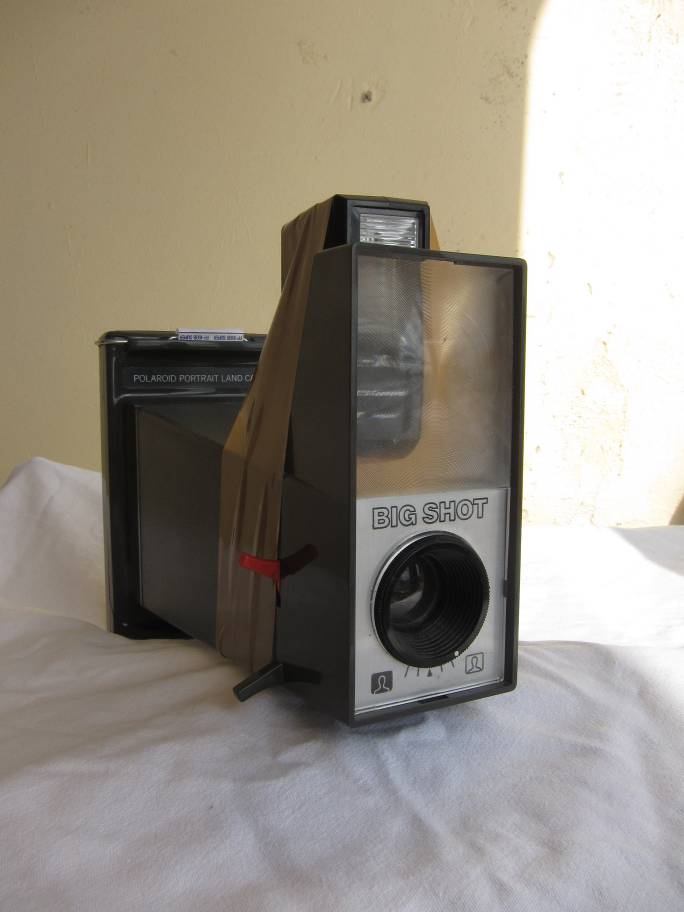

../jpgdiy/big_shot_kalimar_k_462_02.JPG
Not pretty, but functional.

You can also use it as master flash and install a more powerful slave flash. A very nice solution for portaits.

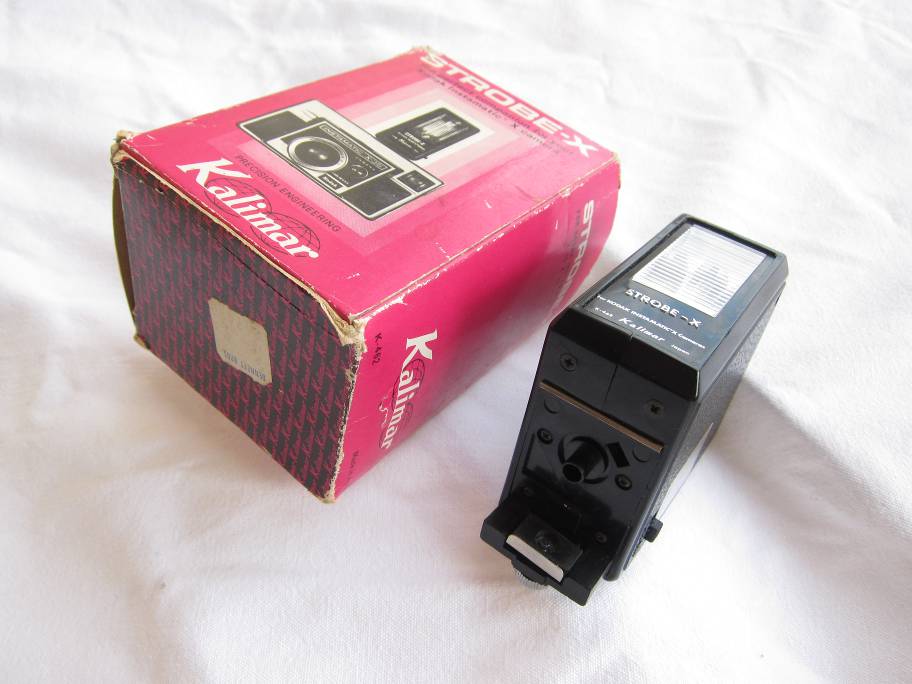

../jpgdiy/big_shot_kalimar_k_462_01.JPG
The flash and its original box.

The second one is much more common, a Kalimar Strobe A for Kodak Pocket. I got it for $7.00 + shipping.

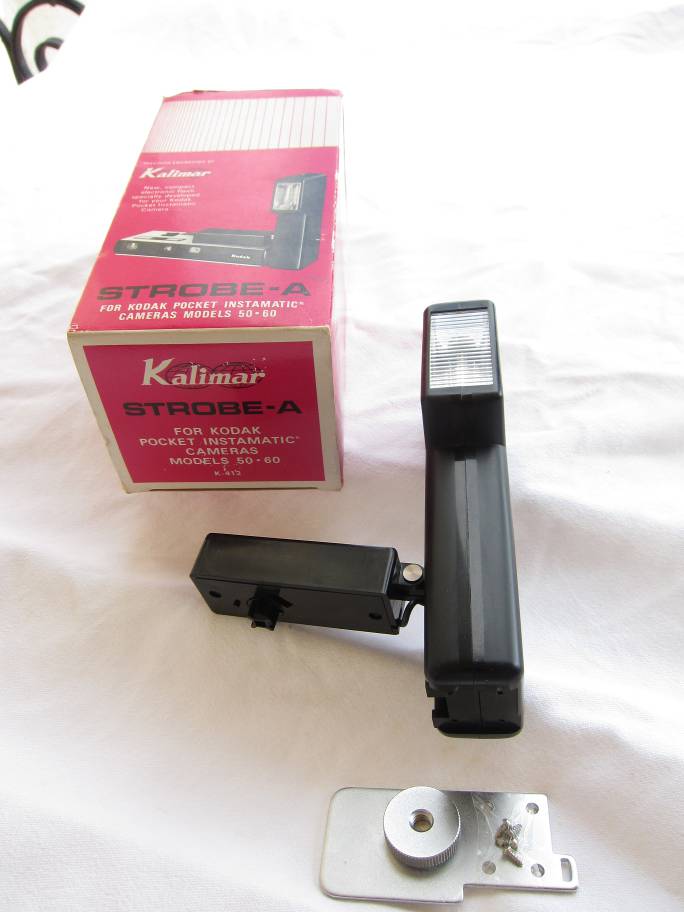

../jpgdiy/big_shot_kalimar_strobe_a_01.JPG
The flash and its original box.
I have unscrewed the metal base to try its function.

../jpgdiy/big_shot_kalimar_strobe_a_02.JPG
The flash attached to the Big Shot, just for testing.

As it hangs in front of the viewfinder, this is not viable, but at least it flashes. You should either remove the rivet from arm, turn it 180° and reattach it (it then hangs on the right side), or you only keep the arm and cable that goes into the flash. You can solder a standard connector to the cable. And there you are with a device that replaces the unfindable National PW 110.

../jpgdiy/big_shot_kal_ee100.JPG
And here are the results. The guide number is weak,
lighten/darken has to be set to the farmost lighten setting. Inside (upper photo), there is not enough light. Outside (lower photo) it's just enough to let you use the Big Shot even with a faint flash.

On the picture is a Polaroid EE100
special.
